F Series · Folding Door
The F Series brings cooking, washing and storage into one outdoor kitchen. Open the folding cover for use, then close it to protect the work area when the kitchen is not in use. The catalogue configuration combines a grill, sink, storage and refrigerator; final appliance selection is confirmed with your quotation.

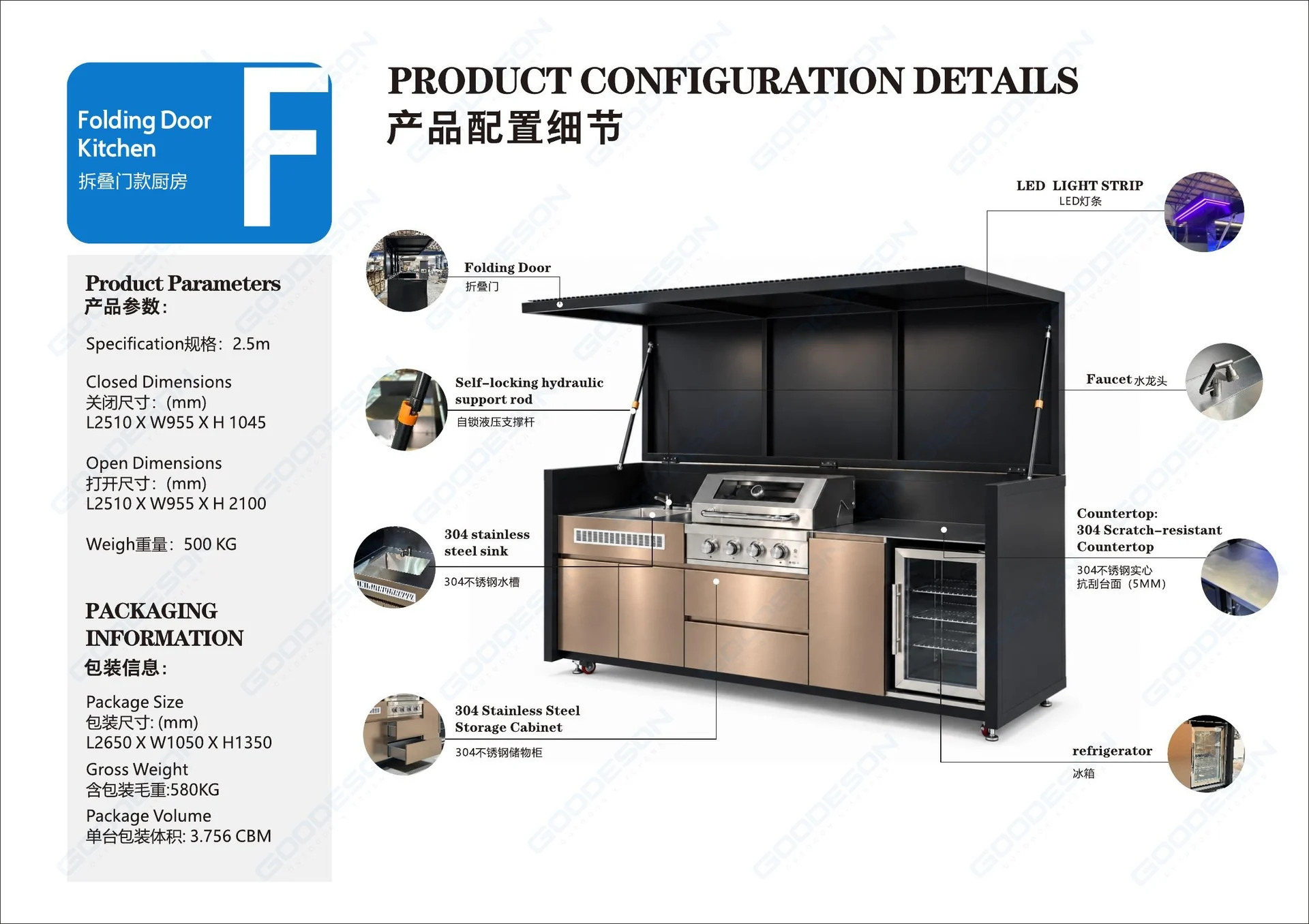

Configuration & finishes

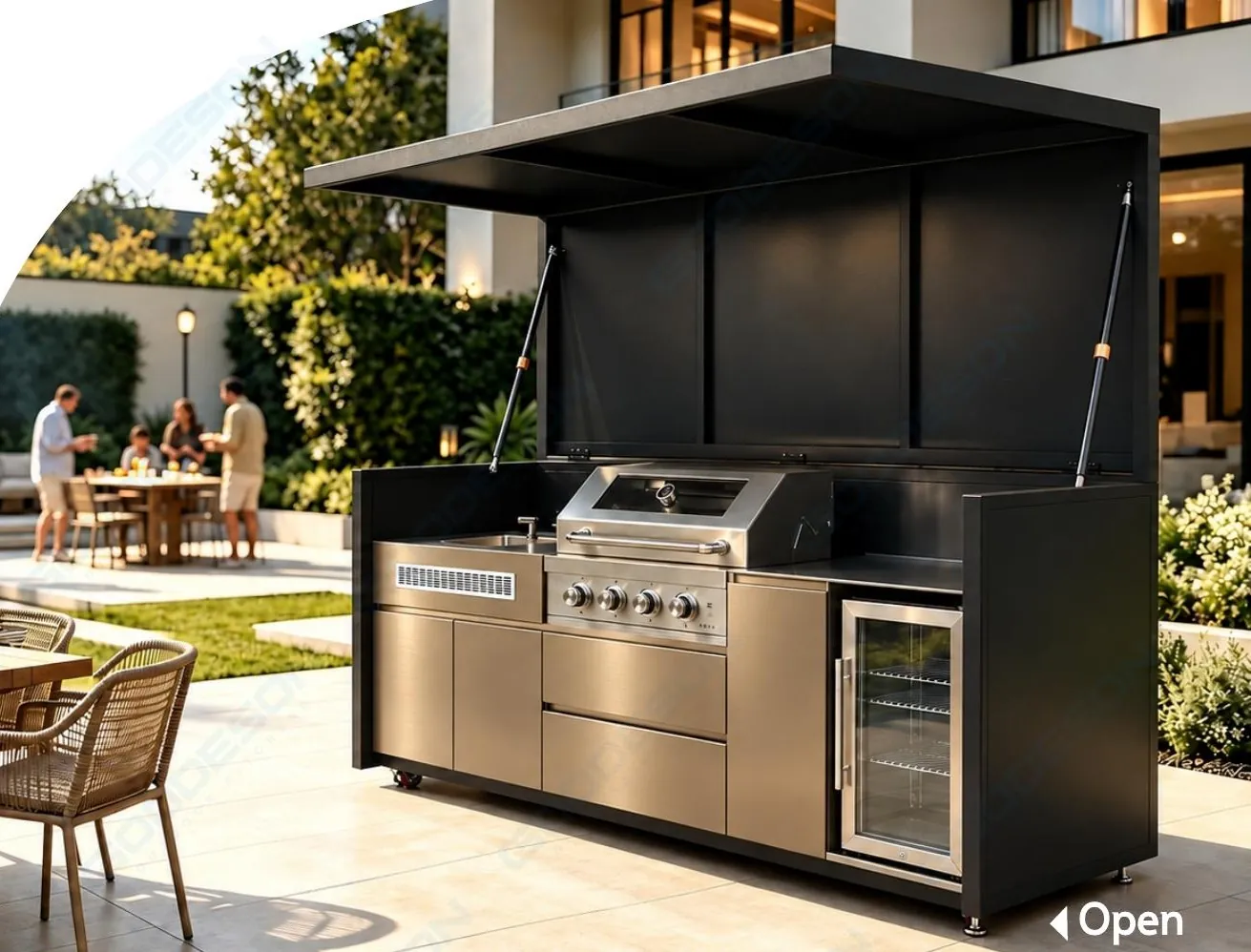

Featured F Series folding-door kitchen with 304 stainless steel cabinets and countertop. Open to cook, close to protect.
Engineered Details
Folding-door design

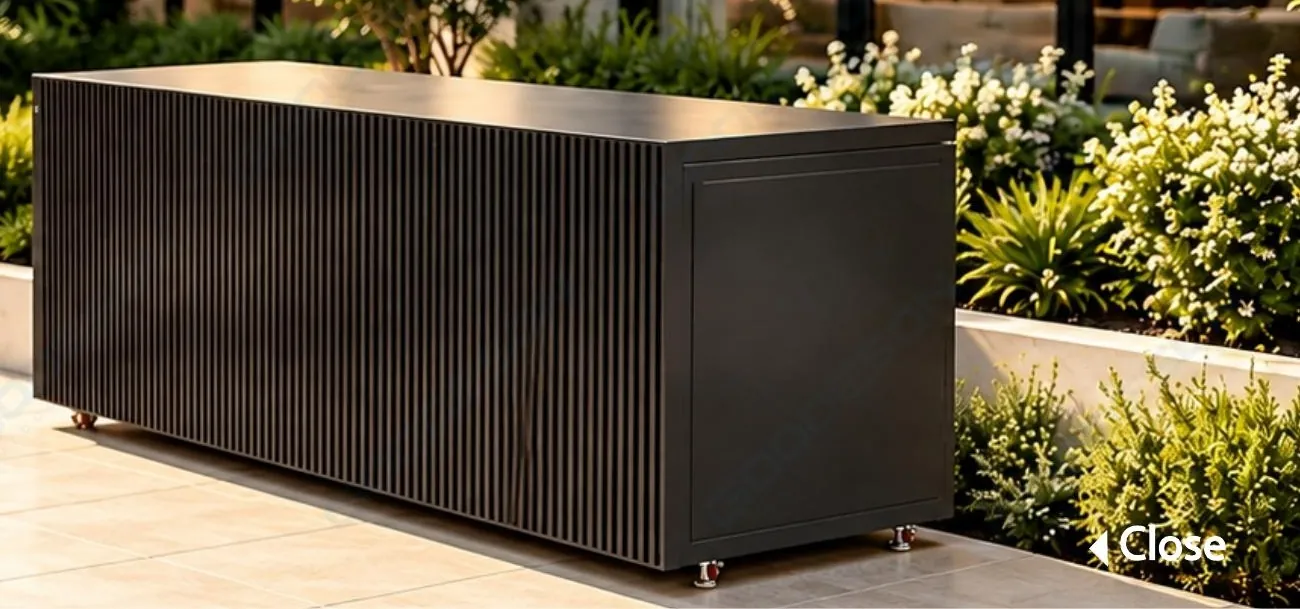

Open for cooking and close to protect the work area. A compact closed form keeps the outdoor space tidy between gatherings.
Self-locking hydraulic support
The catalogue specifies self-locking hydraulic support rods for the folding cover.
304 stainless steel work zone
304 stainless steel cabinets and sink, plus a 5 mm solid scratch-resistant 304 stainless steel countertop.
An integrated kitchen
The illustrated configuration includes a grill, faucet, sink, refrigerator and storage. Confirm the appliance package with your quotation.
LED lighting
An LED light strip is included in the catalogue configuration for the cooking area.

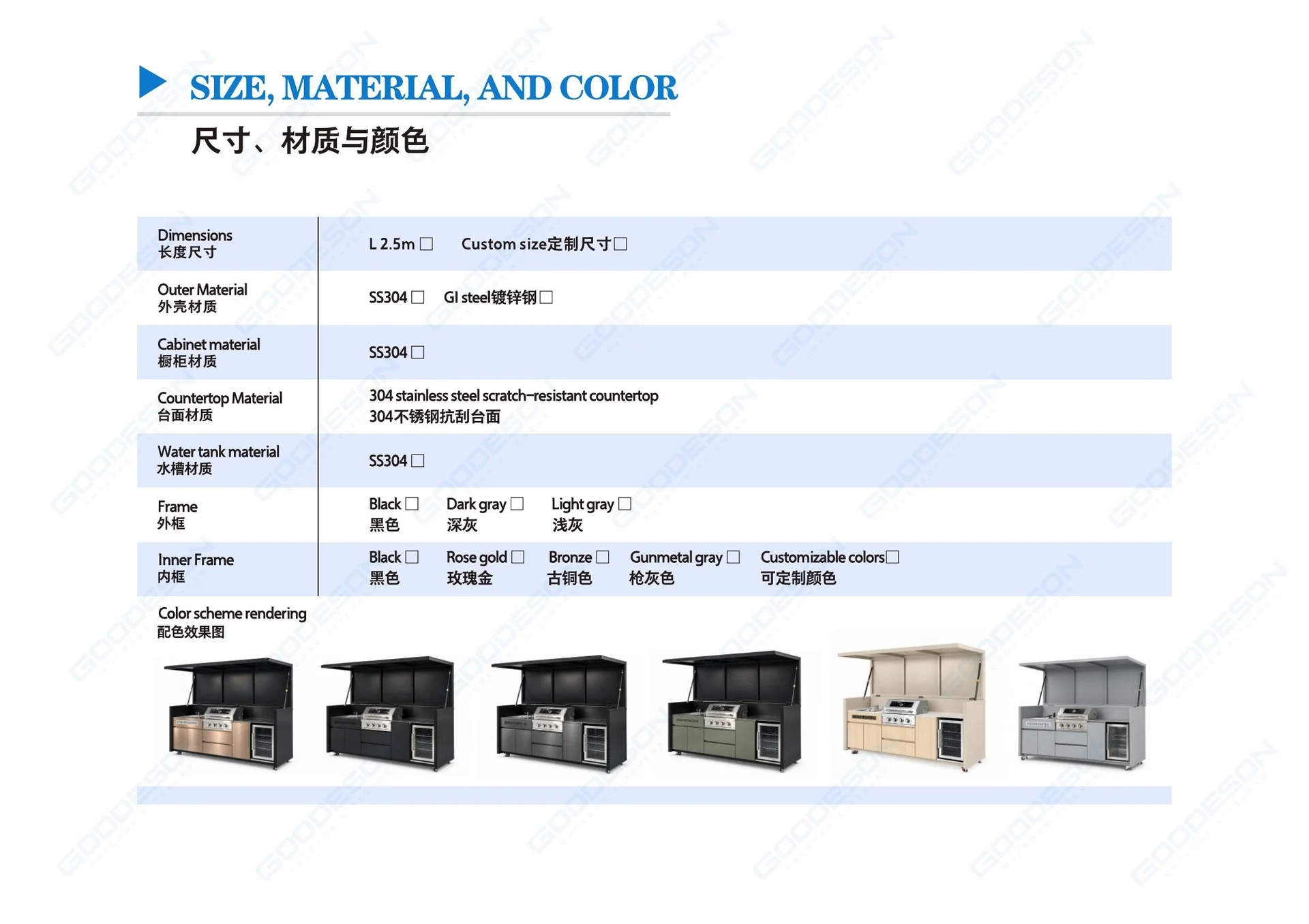

Material and colour choices
Choose an SS304 or galvanised-steel outer shell. Frame colours include black, dark grey and light grey; inner finishes include black, rose gold, bronze and gunmetal grey, with custom colours available.
Technical Reference
| Nominal size | 2.5 m; custom sizes by confirmation |
| Closed dimensions (L × W × H) | 2510 × 955 × 1045 mm |
| Open dimensions (L × W × H) | 2510 × 955 × 2100 mm |
| Product weight | 500 kg |
| Outer shell options | SS304 stainless steel / galvanised steel |
| Cabinets / sink | SS304 stainless steel |
| Countertop | 5 mm solid scratch-resistant 304 stainless steel |
| Packed dimensions (L × W × H) | 2650 × 1050 × 1350 mm |
| Gross packed weight | 580 kg |
| Catalogue package volume | 3.756 m³ |
Figures describe the 2.5 m catalogue configuration. Final dimensions, finish, appliances and shipping quotation are confirmed per order.
Built In-House. Shipped Worldwide.

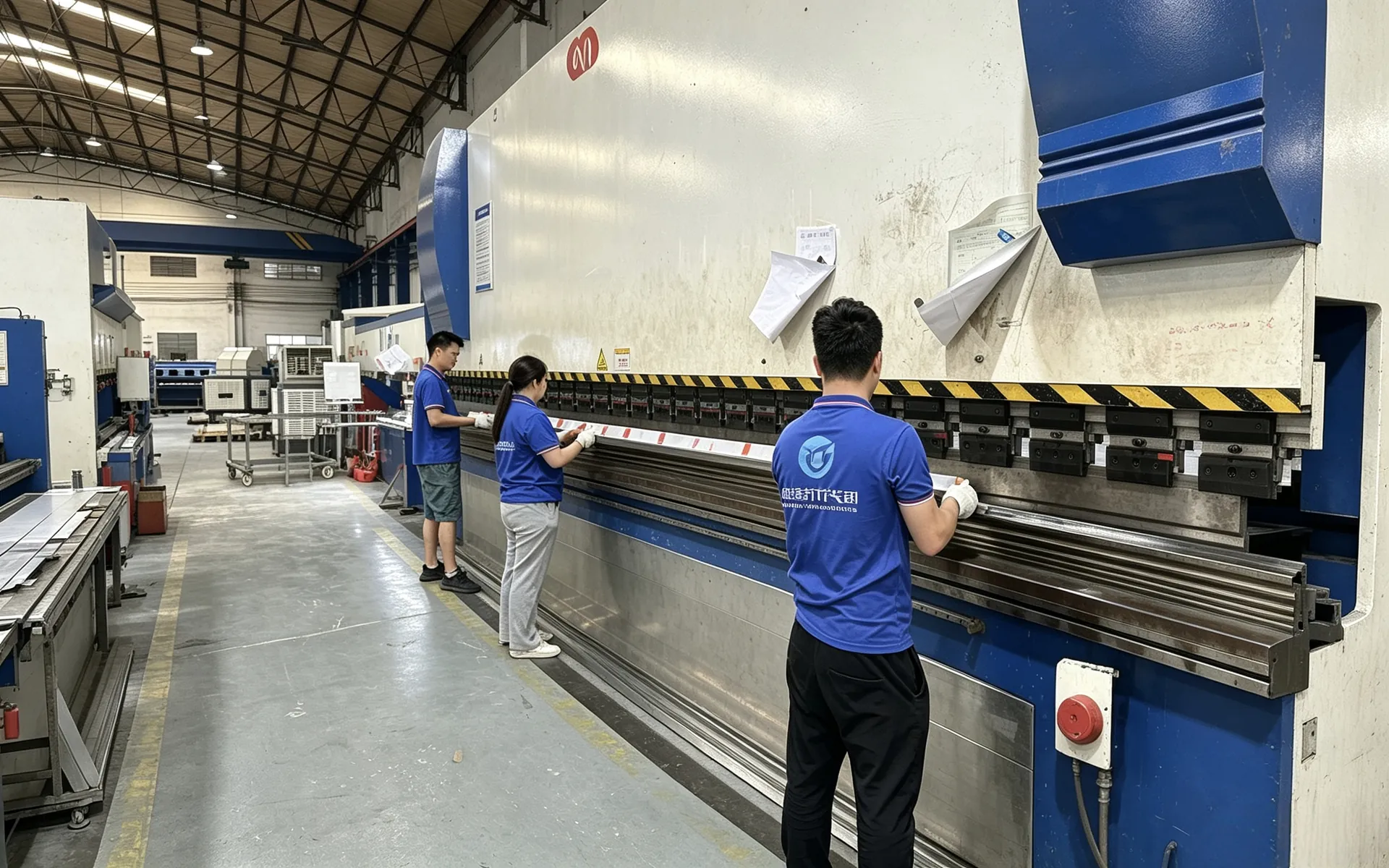

Every unit is manufactured in our own factory — not outsourced. We control material selection, welding, surface finishing, door mechanism testing and export packaging.
See the factoryProduct FAQ
- Is the complete unit made from 304 stainless steel?
- The cabinets and sink are SS304, and the countertop is 304 stainless steel. The outer shell can be SS304 or galvanised steel, so confirm the selected shell material on your order.
- Can I customise the size and colour?
- Yes. The catalogue offers a 2.5 m model, custom sizes and multiple frame and inner-finish colours. Availability is confirmed with your project quotation.
- Which appliances are included?
- The catalogue illustrates a grill, refrigerator, sink and faucet. Confirm the exact appliance models, utility connections and inclusions before ordering.
